Standard suction-cup holders with fixing screw

A very strong nickel plated brass tubular element, with a rapid joint for attachment to a suction tube, together with a threaded sleeve with two nuts for attachment to the unit, and one or two springs to dampen the contact and exert a continuous pressure on the object to which the suction cup is attached.

  • Rapid straight and “L” shaped joint
  • Plastic tube diameter 6 x 8
  • ”L” shaped rapid joint = art. PS.........L

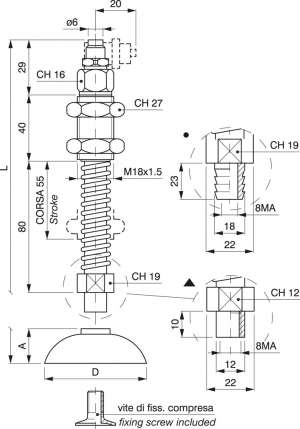

Standard suction-cup holders with fixing screw
PS_25C
Art. A D L c 15 L c 25 L c 55 L c 80 Lc120 Vite di fiss.Fixing screwBef. schraube
PS 25/C 8 25 117 127 157 188 229 SUM 9
PS 30/C 8 30 117 127 157 188 229 SUM 9
PS 35/C 10 35 119 129 159 190 231 SUM 8
PS 35/L 17 35 126 136 166 197 238 SUM 8
PS 45/C 17 45 126 136 166 197 238 SUM 14
PS 45/L 20 45 129 139 169 200 241 SUM 14
PS 60 22 59 131 141 171 202 243 SUM 21
PS 65 24 65 133 143 173 204 245 SUM 21
PS87 40 87 149 159 189 220 - SUM 21
NB: the suction cups are supplied on request, specifying the material
