Vacuum pumps with lubrication - 2-4 mc/h

Vacuum pumps with lubrication - 2-4 mc/h

Characteristics

Gamavuoto 2 and 4m3/h lubricated vacuum pumps are characterized by a very simple design, by a strong, compact body and by a simple but efficient air cooling system.

They require only the bare minimum of maintenance since the recycling lubrication allows the oil to be changed or topped up only according to the actual operating times.

Installation

Connect up the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction. WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.

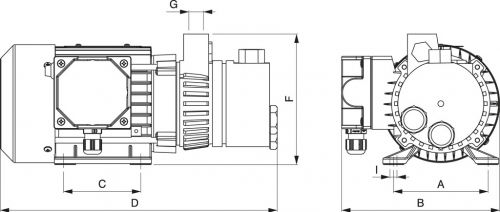

Art. Volume aspiratoVacuum flowVakuum-Durchsatz Press. finaleFinal pressure ABSEnddruck VelocitàRpmGeschwindigkeit Potenza motoreMotor powerMotorleistung PesoWeightGewicht A B C D F G I Viscosità olioOil viscosityViskosität Öl
50 Hz
Mc/h
60 Hz
Mc/h
mbar/ass 50 Hz
g/min
60 Hz
g/min
50 Hz
Kw
60 Hz
Kw
kg
GPOL 2 2 2.4 150 2900 3300 0.13 0.15 5 90 145 71 260 130 1/4" 6.5 ISO 32
GPOL 4 4 4.8 150 2900 3300 0.18 0.21 7 100 165 80 285 135 3/8" 6.5
