Vacuum pumps with lubrication without recirculation G series - 5-20 mc/h

Vacuum pumps with lubrication without recirculation G series - 5-20 mc/h

Characteristics

Gamavuoto 5 to 20 m3/h lubricated vacuum pumps are characterized by a very simple design, by a strong, compact body and by a simple but efficient air cooling system. In the “G” series the electric motor is connected to the body of the pump through a flexible connector and this allows the use of different kinds of motors (DC power, ADPE, ATEX, and so on…). In this version of the pump, the lubricant is in a transparent tank placed at the top and is equipped with a level switch which allows managing the possible lack ofoil, which, once used for the normal process lubricant, is accumulated in the tank located below the discharge / silencer of the pump and is no longer put back into circulation, thus preventing any impurities (dust, liquids, etc.) not retained by the main filter during intake from accumulating and causing performance deterioration. Equipped with silencers which strongly reduce the noise level, these pumps can also be requested with a single-phase motor.

Installation

Connect up to the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction.

WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.

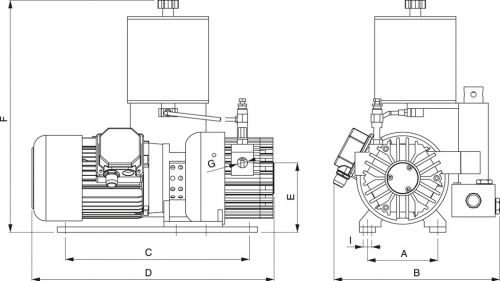

Art. Volume aspiratoVacuum flowVak.-Durchs Press. finaleFinal pressure ABSEndddruck VelocitàRpmGeschwindigkeit Potenza motoreMotor powerMotorleistung PesoWeightGewicht A B C D E F G I Viscosità olioOil viscosityÖlviskosität
50 Hz
Mc/h
60 Hz
Mc/h
mbar/ass 50 Hz
g/min
60 Hz
g/min
50 Hz
Kw
60 Hz
Kw
kg
GPOL 5/GLP 5 6 40 1450 1700 0.25 0.30 15 130 250 340 410 130 475 3/8” 8.5 ISO 32
GPOL 10/GLP 10 12 40 1450 1700 0.55 0.66 25 130 300 340 430 130 475 1/2" 8.5 ISO 100
GPOL 15/GLP 15 18 40 1450 1700 0.55 0.66 28 130 300 340 450 130 475 1/2” 8.5
GPOL 20/GLP 20 24 40 1450 1700 0.88 1 32 130 300 340 470 130 475 1/2" 8.5
