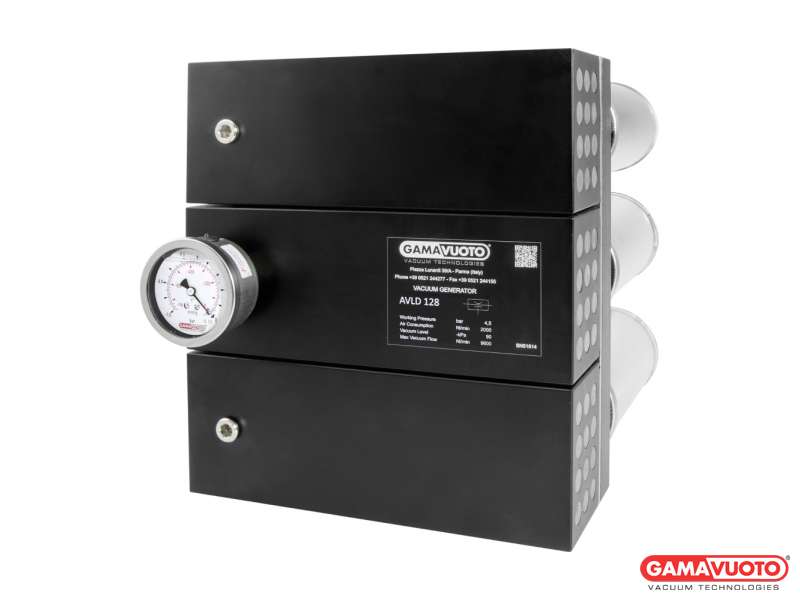

Generatori di vuoto multistadio mod. AVLD 128

Generatori di vuoto multistadio mod. AVLD 128

Art. A B C L F Ai Ø Ao Ø V Ø ØV Att. D
            Air in Air out Vacuum VuotometroVacuum gaugeVakuummeter
AVL 128 138 295 43 250 180 1/2" 1-1/2" x3 2" 1/4" 221
CaratteristicheTechnical detailsEigenschaften AVLD 128
Pressione ottimale d’eserc. (Bar max 7)Optimum working pressure (Bar max 7)Optimaler Betriebsdruck (Bar max 7) 6
Consumo d’aria Nl/min a 4 BarAir consumption Nl/min at 4 BarLuftverbrauch Nl/min bei 4 Bar 2000
Vuoto max raggiungibile mm/Hg a 6 BarMax. vacuum possible mm/Hg 6 BarMax. erreichbares Vakuum mm/Hg bei 6 Bar 675
Portata (aspirazione) Nl/min. a 6 Bar(Suction) capacity Nl/min. at 6 BarDurchsatz (Ansaugung) Nl/min. bei 6 Bar 9600
