Disc suction cup VDUT series with relief valve

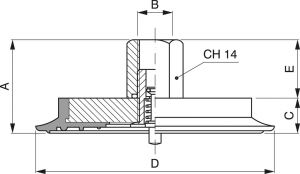

Art. | A | B | C | DØ | E | CH |
---|---|---|---|---|---|---|
VDUT 65 | 33 | 1/8" | 16 | 65 | 17 | 14 |
VDUT 67 | 49 | 1/2" | 17 | 65 | 32 | 30 |
VDUT 85 | 49.5 | 1/2" | 17.5 | 85 | 32 | 30 |
VDUT 90 | 49.5 | 1/2" | 17 | 90 | 32 | 30 |
VDUT 120 | 49 | 1/2" | 17 | 120 | 32 | 30 |
VDUT 160 | 56 | 1/2" | 24 | 160 | 32 | 30 |
Art. | VentosaS. cupSaugn. | + Disco+ Disc+ Scheibe | + Tast.+ Sensor+ Sonde |
---|---|---|---|
VDUT 65 | VD65 | D.VD6518 | T.075 |
VDUT 67 | VD67 | D.VD9012 | T.110 |
VDUT 85 | VD85 | D.VD9012 | T.110 |
VDUT 90 | VD90 | D.VD9012 | T.110 |
VDUT 120 | VD120 | D.VD12012 | T.110 |
VDUT 160 | VD160 | D.VD16012 | T.110 |
