Disc suction cup VDE series flat with rays and vulcanized support
Disc suction cup VDE series flat with rays and vulcanized support

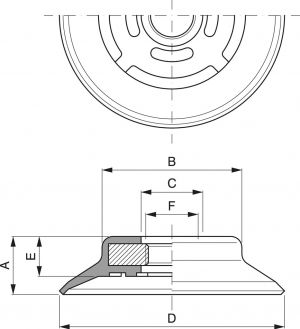

| Art. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| VDE 60 | 16 | 38 | 17 | 60 | 11 | 1/4” |
| VDE 80 | 16 | 52 | 17 | 80 | 12 | 1/4” |
| VDE 95 | 16 | 66 | 17 | 95 | 12 | 1/4” |

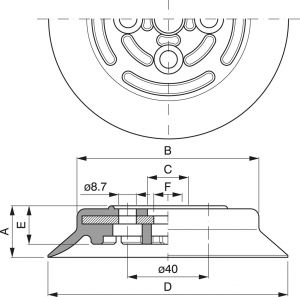

| Art. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| VDE 121 | 25 | 90 | 20 | 120 | 18.5 | 14 |
| VDE 151 | 32 | 105 | 20 | 150 | 22.5 | 13 |
| VDE 201 | 39 | 142 | 21 | 200 | 24 | 13 |
