Disc suction cups PF series with support and relief valve
Disc suction cups PF series with support and relief valve

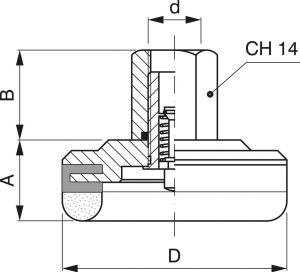

| Art. | VentosaS. cupSaugn. | + Tast.+ Sensor+ Sonde | A | B | D | d |
|---|---|---|---|---|---|---|
| PF 42 50 | PF 42 40 | T.75 | 15.5 | 17 | 42.5 | 1/8" |
| PF 70 50 | PF 70 40 | T.75 | 15.5 | 17 | 67.5 | 1/8" |
| PF 110 50 | PF 110 40 | T.110 | 19 | 32 | 107.5 | 1/2" |
| PF 150 50 | PF 150 40 | T.110 | 23 | 32 | 145 | 1/2" |
