With characteristics similar to the «AVL» series, the new «AVLG» generator series is made in die-cast aluminium, but with the great advantage of being made up of from 1 to 3 practical and light modules and of being «modified», according to requirements. Every module consists of 1 or 2 rows of ejectors, with which it is possible to easily and quickly assemble generators which cover capacities ranging from 10 to 50 cu m/h while always maintaining the same max possible vacuum. The new «AVLG» series, thanks to its «modularity», is recommended for systems whose capacity needs to be changed, because their applications or processes change over time (e.g. from cardboard boxes to films, or porous materials etc.).

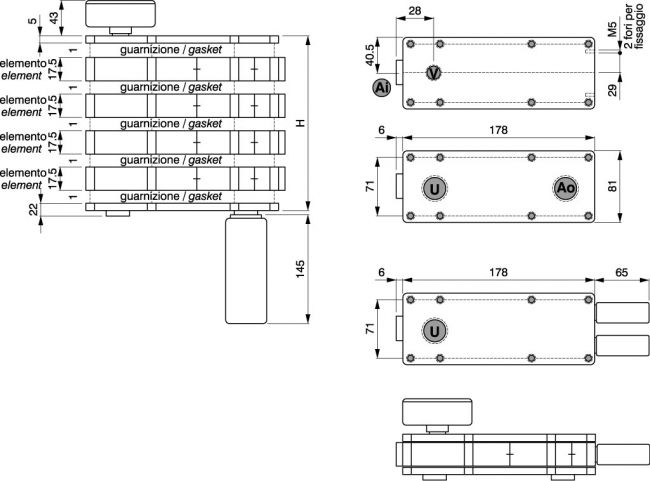

Art. Num. elementiN. of elementsAnz. elemente H Ai Ø Ao Ø V Ø ØV Att.
      Air in Air out Vacuum VuotometroVacuum gaugeVakuummeter
AVLG 12 1 46.5 1/4" 1" 1" 1/4"
AVLG 20 1 46.5 1/4" 1" 1" 1/4"
AVLG 30 2 65 1/4" 1" 1" 1/4"
AVLG 36 2 65 1/4" 1" 1" 1/4"
AVLG 42 3 83.5 1/4" 1" 1" 1/4"
AVLG 50 3 83.5 1/4" 1" 1" 1/4"
AVLG 66 4 102 1/4" 1" 1" 1/4"
CaratteristicheTechnical detailsEigenschaften AVLG 12 AVLG 20 AVLG 30 AVLG 36 AVLG 42 AVLG 50 AVLG 66
Pressione ottimale d’eserc. (Bar max 7)Optimum working pressure (Bar max 7)Optimaler Betriebsdruck (Bar max 7) 4 4 4 4 4 4 4
Consumo d’aria Nl/min a 4 BarAir consumption Nl/min at 4 BarLuftverbrauch Nl/min bei 4 Bar 65 130 190 250 300 360 420
Vuoto max raggiungibile -kPa a 4 BarMax. vacuum possible -kPa 4 BarMax. erreichbares Vakuum -kPa bei 4 Bar 90 90 90 90 90 90 90
Portata (aspirazione) Nl/min. a 6 Bar(Suction) capacity Nl/min. at 6 BarDurchsatz (Absaugung) Nl/min. bei 6 Bar 190 325 500 600 696 850 930
Available also with silencers in line.
