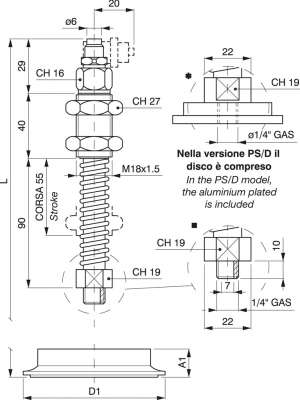

Standard suction-cup holders with male thread
Standard suction-cup holders with male thread
- Rapid straight and “L” shaped joint
- Plastic tube diameter 6 x 8
- ”L” shaped rapid joint = art. PS.........L
| Art. | A1 | D1 | L c25 | L c55 | L c80 | L c120 |
|---|---|---|---|---|---|---|
| ■ PS65 1/4” | - | - | 120 | 170 | 190 | - |
| ✱ PS/D 65 | 16 | 65 | 125 | 176 | 196 | - |
| ✱ PS/D 90 | 17.5 | 90 | 126.5 | 177.5 | 197.5 | - |
| ✱ PS/D 120 | 17 | 120 | 126 | 177 | 197 | - |
NB: the suction cups are supplied on request, specifying the material
- Standard suction-cup holders with fixing screw
- Standard suction-cup holders with male thread
- Standard suction-cup holders with valve and fi xing screw
- Standard suction-cup holders with valve and male thread
- Standard suction-cup holders bulkhead in acetal resin
- Standard suction-cup holders anti-rotative
- Standard suction-cup holders with swivel joint
