Standard suction-cup holders anti-rotative
The special feature of this suction cup is the hexagonal stem that prevents it from rotating on itself. They are particularly suitable for rectangular and oval suction cups and if it is
necessary, to keep the suction cup fixed on its own axis.
Also available with screwing lengths of 25mm, 55 mm, 80mm and 120mm.
Other strokes are available on request
- Rapid straight and “L” shaped joints
- Plastic tube diameter 6 x 8
- Rapid “L” shaped joint = art. PA......L

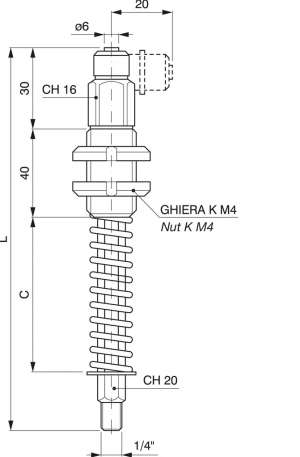

Art. | L | C |
---|---|---|
PA 65 c25 | 130 | 54 |
PA 65 c55 | 172 | 84 |
PA 65 c80 | 202 | 114 |
PA 65 c120 | 243 | 155 |
NB: the suction cups are supplied on request, specifying the material
