Magnum sucion-cup holder with swivel joint

Magnum sucion-cup holder with swivel joint

They come with the same technical / mechanical characteristics as the normal Magnum suction-cup holders, but come with an aligning probe with aspherical swivel joint, which allows the sucker to also grip onto an inclined surface. The structure of the Magnum allow seven heavy weights to be lifted.

Rapid “L” shaped joint for plastic tubes diameter 6x8 = art. PMSD.......L

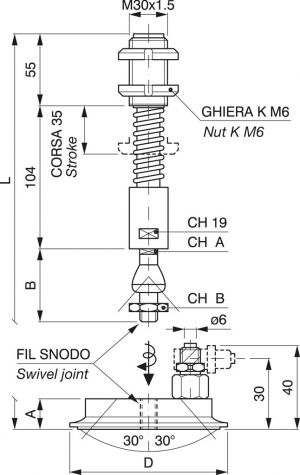

Art. A B D L Filetto SnodoSwivel jointDrehgelenk A CH B CH
PMSD 250 45 88 255 292 16 x 1.5 22 24
PMSD 300 45 88 285 292 16 x 1.5 22 24
NB: the suction cups and disc are supplied on request, specifying the material
