Vacuum pumps with lubrication and oil separator cartridge G series - 40-80 mc/h
Vacuum pumps with lubrication and oil separator cartridge G series - 40-80 mc/h
Characteristics

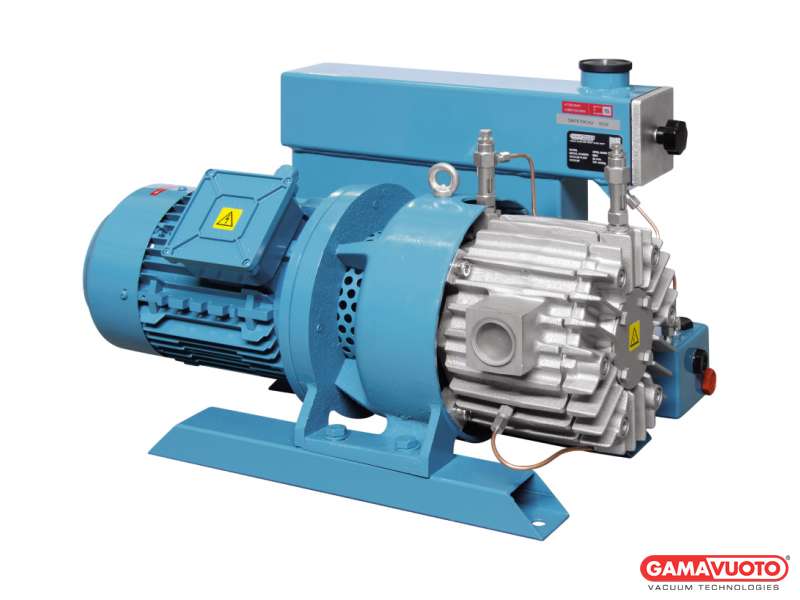

Gamavuoto 40 to 80 m3/h lubricated vacuum pumps are characterized by a very simple design, by a strong, compact body and by a simple but efficient air cooling system.
In the “G” series the electric motor is connected to the body of the pump through a flexible connector and this allows the use of different kinds of motors and there is also an oil separator filter cartridge an interchangeable oil separator filter cartridge placed on the exhaust that helps to reduce practically to zero smoke emissions.
They require only the bare minimum of maintenance since the recycling lubrication allows the oil to be changed or topped up only according to the actual operating times.
Installation
Connect up to the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction.
WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.
| Art. | Volume aspiratoVacuum flowVak.-Durchs. | Press. finaleFinal pressure ABSEndddruck | VelocitàRpmGeschwindigkeit | Potenza motoreMotor powerMotorleistung | PesoWeightGewicht | A | B | C | D | E | F | G | I | Viscosità olioOil viscosityÖlviskosität | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Hz Mc/h |
60 Hz Mc/h |
mbar/ass | 50 Hz g/min |
60 Hz g/min |
50 Hz Kw |
60 Hz Kw |
kg | ||||||||||
| GPOL 40/GD | 40 | 48 | 65 | 1450 | 1700 | 1.1 | 1.3 | 49 | 210 | 385 | 415 | 520 | 185 | 390 | 1” | 12.5 | ISO 100 |
| GPOL 50/GD | 50 | 60 | 65 | 1450 | 1700 | 1.5 | 1.75 | 55 | 210 | 385 | 415 | 560 | 185 | 390 | 1" | 12.5 | |
| GPOL 65/GD | 65 | 78 | 65 | 1450 | 1700 | 1.5 | 1.75 | 60 | 210 | 385 | 415 | 580 | 185 | 390 | 1” | 12.5 | |
| GPOL 80/GD | 80 | 96 | 65 | 1450 | 1750 | 2.2 | 2.6 | 85 | 210 | 385 | 415 | 640 | 185 | 410 | 1-1/2" | 12.5 | ISO 150 |
