Multi-stage vacuum generators mod. AVL 3 - 7
Multi-stage vacuum generators mod. AVL 3 - 7
Air economy series (AVL)
The ideal proposal for equipment used to lift material that is either heavy or particularly rough. They are normally used to operate in more than one work area.

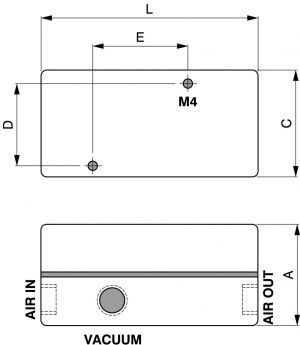

| Art. | A | C | L | Ai Ø | Ao Ø | V Ø | D | E |
|---|---|---|---|---|---|---|---|---|
| Air in | Air out | Vacuum | ||||||
| AVL 3 | 31.5 | 35 | 69 | 1/8" | 1/8" | 1/8" | 27 | 30 |
| AVL 7 | 31.5 | 42 | 69 | 1/8" | 1/8" | 1/8" | 34 | 30 |
| CaratteristicheTechnical detailsEigenschaften | AVL 3 | AVL 7 |
|---|---|---|
| Pressione ottimale d’eserc. (Bar max 7)Optimum working pressure (Bar max 7)Optimaler Betriebsdruck (Bar max 7) | 4 | 4 |
| Consumo d’aria Nl/min a 4 BarAir consumption Nl/min at 4 BarLuftverbrauch Nl/min bei 4 Bar | 32 | 60 |
| Vuoto max raggiungibile -kPa a 4 BarMax. vacuum possible -kPa 4 BarMax. erreichbares Vakuum -kPa bei 4 Bar | 87 | 87 |
| Portata (aspirazione) Nl/min. a 4 Bar(Suction) capacity Nl/min. at 4 BarDurchsatz (Ansaugung) Nl/min. bei 4 Bar | 56 | 110 |
