Disc suction cup VDSB 151 - 351 series
Disc suction cup VDSB 151 - 351 series
| Art. | D | d | H |
|---|---|---|---|
| VDSB 151 45 | 154 | 120 | 37 |
| VDSB 201 45 | 204 | 170 | 44 |
| VDSB 251 45 | 254 | 220 | 44 |
| VDSB 301 45 | 306 | 272 | 47 |
| VDSB 351 45 | 358 | 324 | 47 |

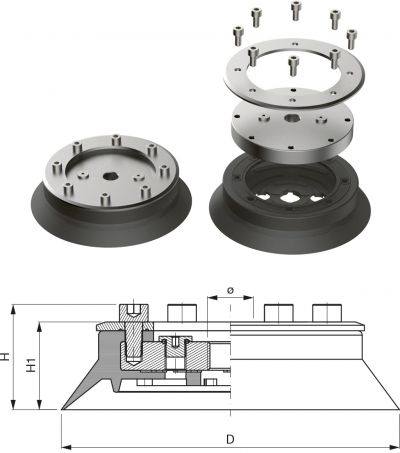

| Art. | D | ø | H | H1 | + SupportoFittingStütze |
|---|---|---|---|---|---|
| VDSB 151 42 | 154 | 1/2" | 48 | 40 | SUFVDSB15142 |
| VDSB 151 43 | 154 | 3/4" | 48 | 40 | SUFVDSB15143 |
| VDSB 201 42 | 204 | 1/2" | 55 | 47 | SUFVDSB20142 |
| VDSB 201 43 | 204 | 3/4" | 55 | 47 | SUFVDSB20143 |
| VDSB 251 42 | 254 | 1/2" | 55 | 47 | SUFVDSB25142 |
| VDSB 251 43 | 254 | 3/4" | 55 | 47 | SUFVDSB25143 |
| VDSB 301 42 | 306 | 1/2" | 58 | 50 | SUFVDSB30142 |
| VDSB 301 43 | 306 | 3/4" | 58 | 50 | SUFVDSB30143 |
| VDSB 351 42 | 358 | 1/2" | 58 | 50 | SUFVDSB35142 |
| VDSB 351 43 | 358 | 3/4" | 58 | 50 | SUFVDSB35143 |
