Pompe per vuoto con lubrificazione - 5-10 mc/h
Pompe per vuoto con lubrificazione - 5-10 mc/h
Characteristics

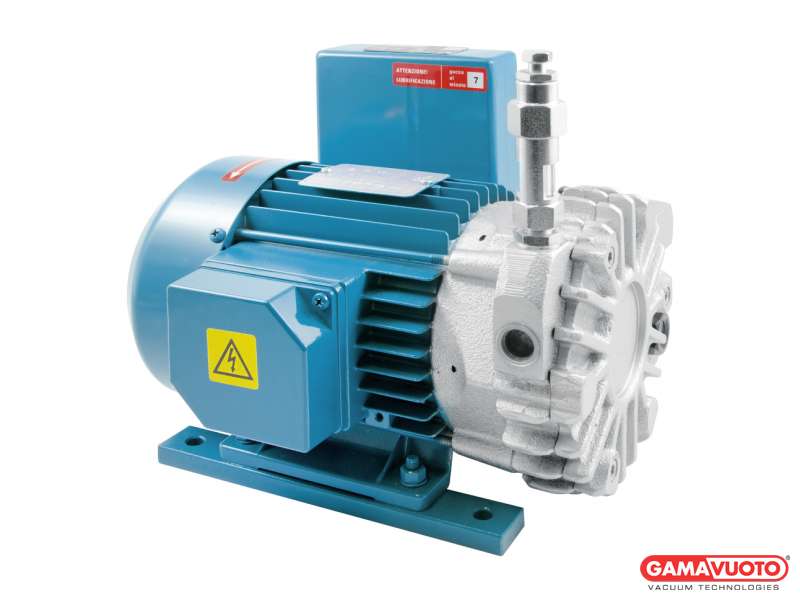

Gamavuoto 2 and 4m3/h lubricated vacuum pumps are characterized by a very simple design, by a strong, compact body and by a simple but efficient air cooling system. They require only the bare minimum of maintenance since the recycling lubrication allows the oil to be changed or topped up only according to the actual operating times.
Istallation
Connect up the vacuum circuit. Set up the electrical connections to the motor and check that the pump is rotating in the right direction. WARNING! If the electrical motor rotates in the wrong direction, the suction unit could be damaged.

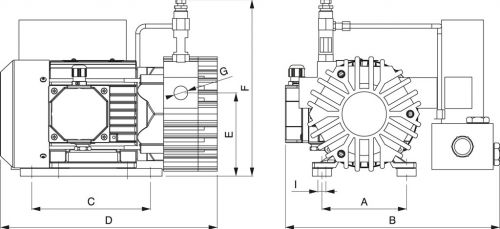

| Art. | Volume aspiratoVacuum flowVakuum-Durchsatz | Press. finaleFinal pressure ABSEnddruck | VelocitàRpmGeschwindi | Potenza motoreMotor powerMotorleistung | PesoWeightGewicht | A | B | C | D | E | F | G | I | Viscosità olioOil viscosityÖlviskosität | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 Hz Mc/h |
60 Hz Mc/h |
mbar/ass | 50 Hz g/min |
60 Hz g/min |
50 Hz Kw |
60 Hz Kw |
kg | ||||||||||
| GPOL 5 | 5 | 6 | 75 | 1450 | 1700 | 0,25 | 0,30 | 14 | 115 | 245 | 155 | 260 | 120 | 245 | 3/8" | 8,5 | ISO 32 |
| GPOL 10 | 10 | 12 | 75 | 1450 | 1700 | 0,37 | 0,44 | 20 | 115 | 265 | 155 | 310 | 120 | 270 | 1/2" | 8,5 | ISO 100 |
