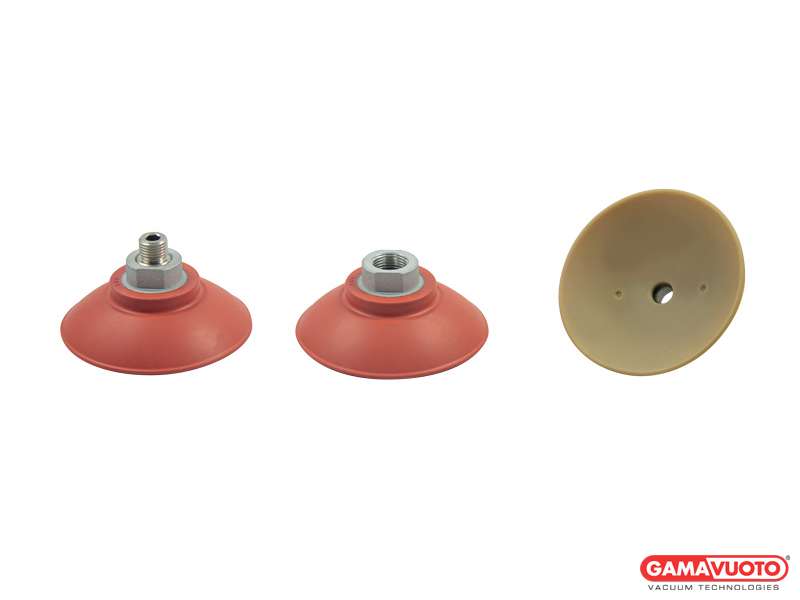

Ventose sferiche - Serie VTL
Ventose sferiche - Serie VTL
| Art. | D | d | F | H | CH | h1 |
|---|---|---|---|---|---|---|
| VTLA 35 | 35 | 6 | 1/4” | 20 | 17 | 3 |
| VTLA 45 | 45 | 6 | 1/4” | 22 | 17 | 4 |
| VTLA 55 | 55 | 6 | 3/8” | 28 | 22 | 5 |
| VTLA 65 | 65 | 6 | 3/8” | 31 | 22 | 6 |
| VTLA 85 | 85 | 6 | 3/8” | 35 | 22 | 7,6 |
| Art. | D | d | F | H | CH | h1 | CH1 | h2 |
|---|---|---|---|---|---|---|---|---|
| VTLB 35 | 35 | 6 | 3/8” | 36 | 17 | 3 | 22 | 9 |
| VTLB 45 | 45 | 6 | 3/8” | 38 | 17 | 4 | 22 | 9 |
| VTLB 55 | 55 | 6 | 1/4” | 33 | 22 | 5 | 20 | 15 |
| VTLB 65 | 65 | 6 | 1/4” | 36 | 22 | 6 | 20 | 15 |
| VTLB 85 | 85 | 6 | 1/4” | 40 | 22 | 7,6 | 20 | 15 |
| Art. | D | d | F | H | CH | h1 | CH1 | h2 |
|---|---|---|---|---|---|---|---|---|
| VTLC 35 | 35 | 6 | 1/4” | 20 | 17 | 3 | 6 | 10 |
| VTLC 45 | 45 | 6 | 1/4” | 22 | 17 | 4 | 6 | 10 |
| VTLC 55 | 55 | 6 | 1/4” | 28 | 22 | 5 | 6 | 10 |
| VTLC 65 | 65 | 6 | 1/4” | 31 | 22 | 6 | 6 | 10 |
| VTLC 85 | 85 | 6 | 1/4” | 35 | 22 | 7,6 | 6 | 10 |
